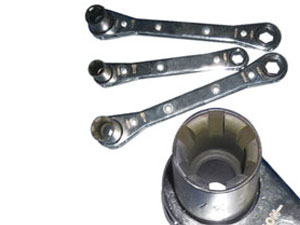

Six-Wing Collar Removal Tools

Standard Socket Models
Part No. Complete Tool
Part No. Socket  Only
Pin Dash No.
Pin Size
‘B’ Dimension
‘C’ Dimension
‘D’ Dimension
Overall  Length
CAT19-15
CAT18-15
-5
5/32”
1/2”
.35”
.38”
4-1/4”
CAT19-18
CAT18-18
-6
3/16"
1/2”
.35”
.38”
4-1/4”
CAT19-25
CAT18-25
-8
1/4”
1/2”
.47”
.38”
4-1/4”
CAT19-31
CAT18-31
-10
5/16”
.65”
.59”
.38”
5-1/2”
CAT19-37
CAT18-37
-12
3/8”
.65”
.66”
.38”
5-1/2”
Extended Socket Models
Part No. Complete Tool
Part No. Socket  Only
Pin Dash No.
Pin Size
‘B’ Dimension
‘C’ Dimension
‘D’ Dimension
Overall  Length
CAT19-15-1
CAT18-15-1
-5
5/32”
1”
.35”
.38”
4-1/4”
CAT19-18-1
CAT18-18-1
-6
3/16"
1”
.35”
.38”
4-1/4”
CAT19-25-1
CAT18-25-1
-8
1/4”
1”
.47”
.38”
4-1/4”
CAT19-31-1
CAT18-31-1
-10
5/16”
1-1/4”
.59”
.38”
5-1/2”
CAT19-37-1
CAT18-37-1
-12
3/8”
1-1/4”
.66”
.38”
5-1/2”
